- CRISTALY® paintable
Description

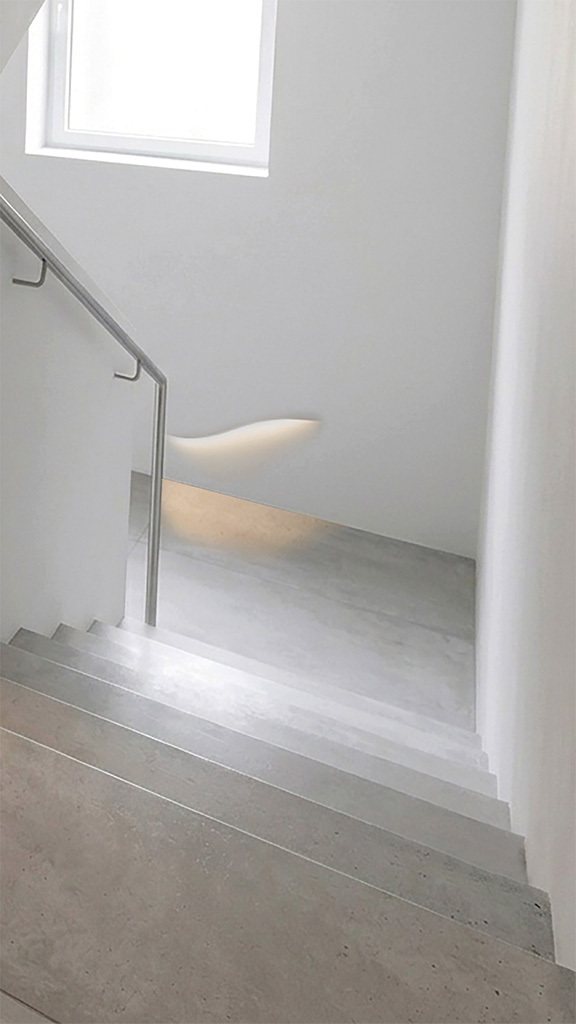

CRISTALY® recessed pathmarker with LED light and a sophisticated design.
Featuring an oval shape recess housing the GU10 50 mm LED, which can be installed both facing up and facing down. Available with housing box for brickwork.
Technical specifications
Main
Article code | 4167 |
---|---|
Net weight | 2.7 Kg |
Materials | CRISTALY® |
Installation
Installation | Wall mounted (Pathway) |
---|---|
Recessed | Recessed |
Screen | Trasparent (included, opal cover available on demand) |
Drywall depth required | 65 mm |
Drywall hole size | 325 mm x 205 mm |
Electrical part
Power supply | Remote driver, not included |
---|---|
Dimmable | Yes, only with dimmable driver |
IP rating | IP20 |
Direct/Indirect light | Indirect light |
Symbols
Dimensions
Variants
Code | Electrical part | Description | Power supply | Driver |
---|---|---|---|---|
4167-3004 | LED - 6.5W - 24Vdc | 3000K - 600lm - CRI85 | Remote driver, not included | |
4167-2704 | LED - 6.5W - 24Vdc | 2700K - 570lm - CRI85 | Remote driver, not included | |
4167-4004 | LED - 6.5W - 24Vdc | 4000K - 640lm - CRI85 | Remote driver, not included |
