- CRISTALY® paintable
RAGO SMALL 4154B
Description

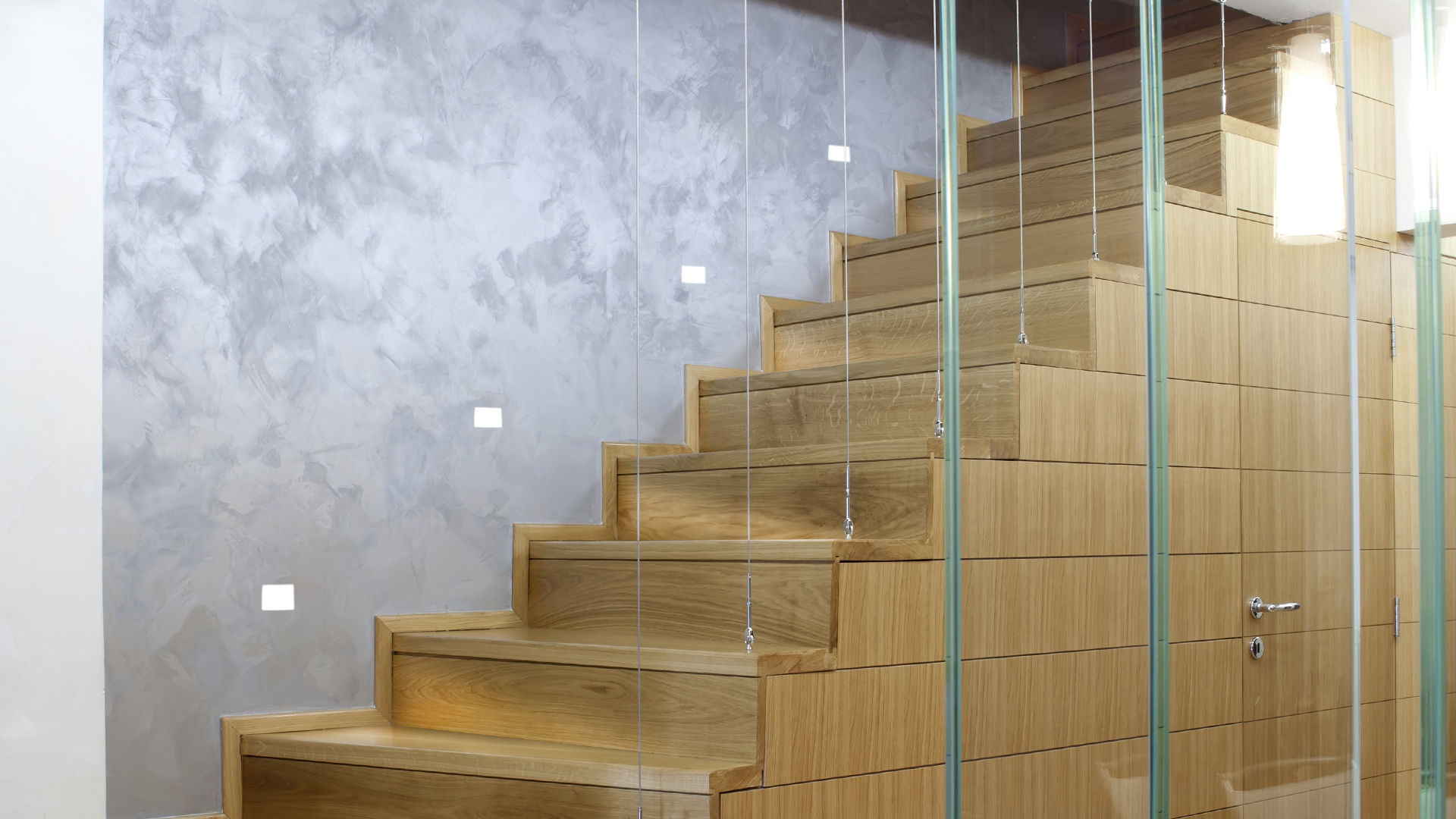

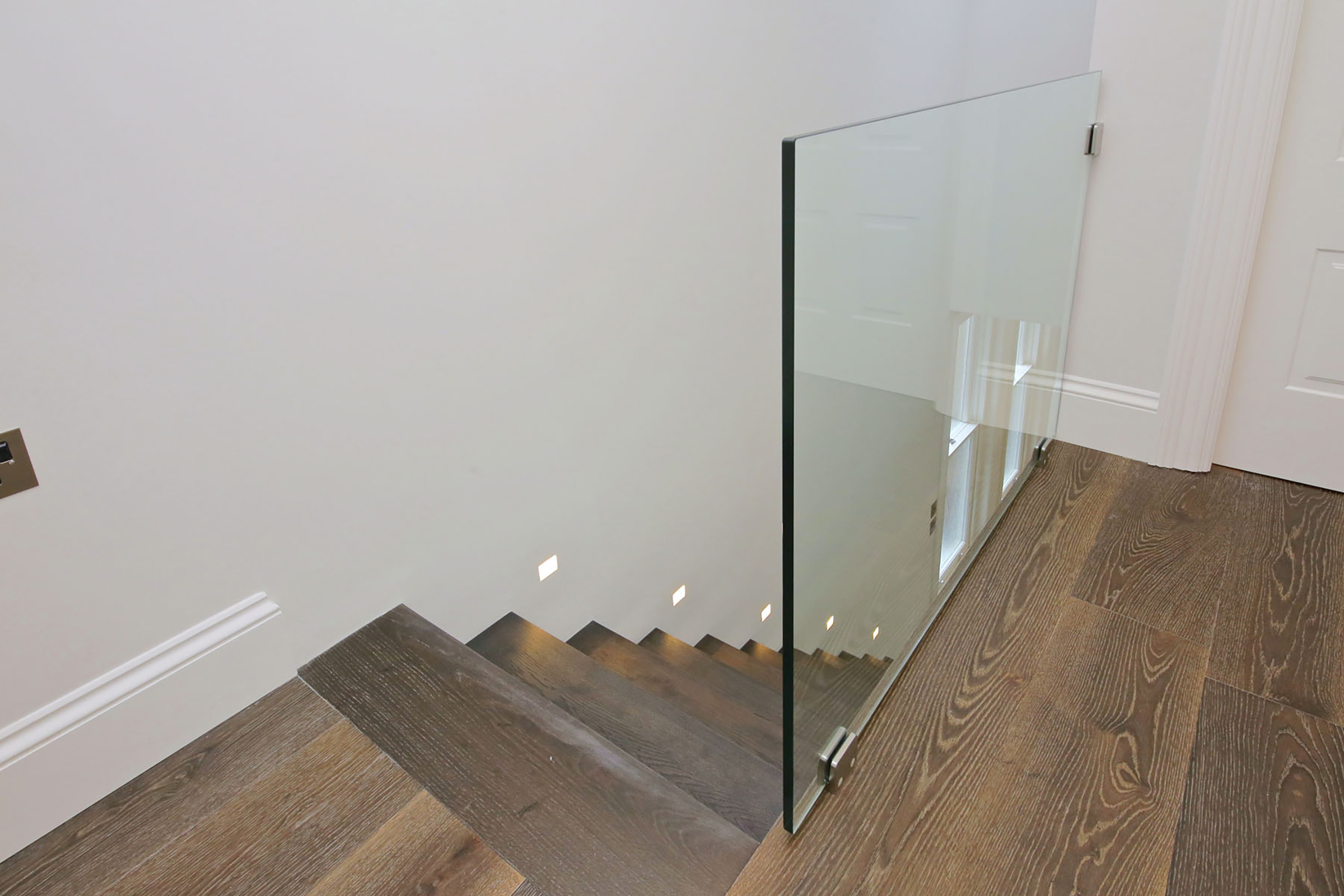

CRISTALY® recessed pathmarker with LED light and a sophisticated design.
Featuring a square shape recess inside which is a LED light, which can be installed both facing up and facing down. Available with housing box for brickwork.
Technical specifications
Main
| Article code | 4154B |
|---|---|
| Net weight | 0.65 Kg |
| Materials | CRISTALY® |
Installation
| Installation | Wall mounted/Ceiling mounted |
|---|---|
| Recessed | Recessed |
| Screen | Metacrilato opalino |
| Drywall depth required | 50 mm |
| Drywall hole size | 140 mm x 140 mm |
Electrical part
| Dimmable | Yes, only with dimmable driver |
|---|---|
| IP rating | IP20 |
| Direct/Indirect light | Indirect light |
Symbols
Dimensions
Variants
| Code | Electrical part | Description | Power supply | Driver |
|---|---|---|---|---|
4154B-3004 | LED - 1.1W - 24Vdc | 3000K - 100lm - CRI85 | ||
4154B-2704 | LED - 1.1W - 24Vdc | 2700K - 95lm - CRI85 | ||
4154B-4004 | LED - 1.1W - 24Vdc | 4000K - 106lm - CRI85 |
