ESTIA BIG 2014

Wall lighting

Description

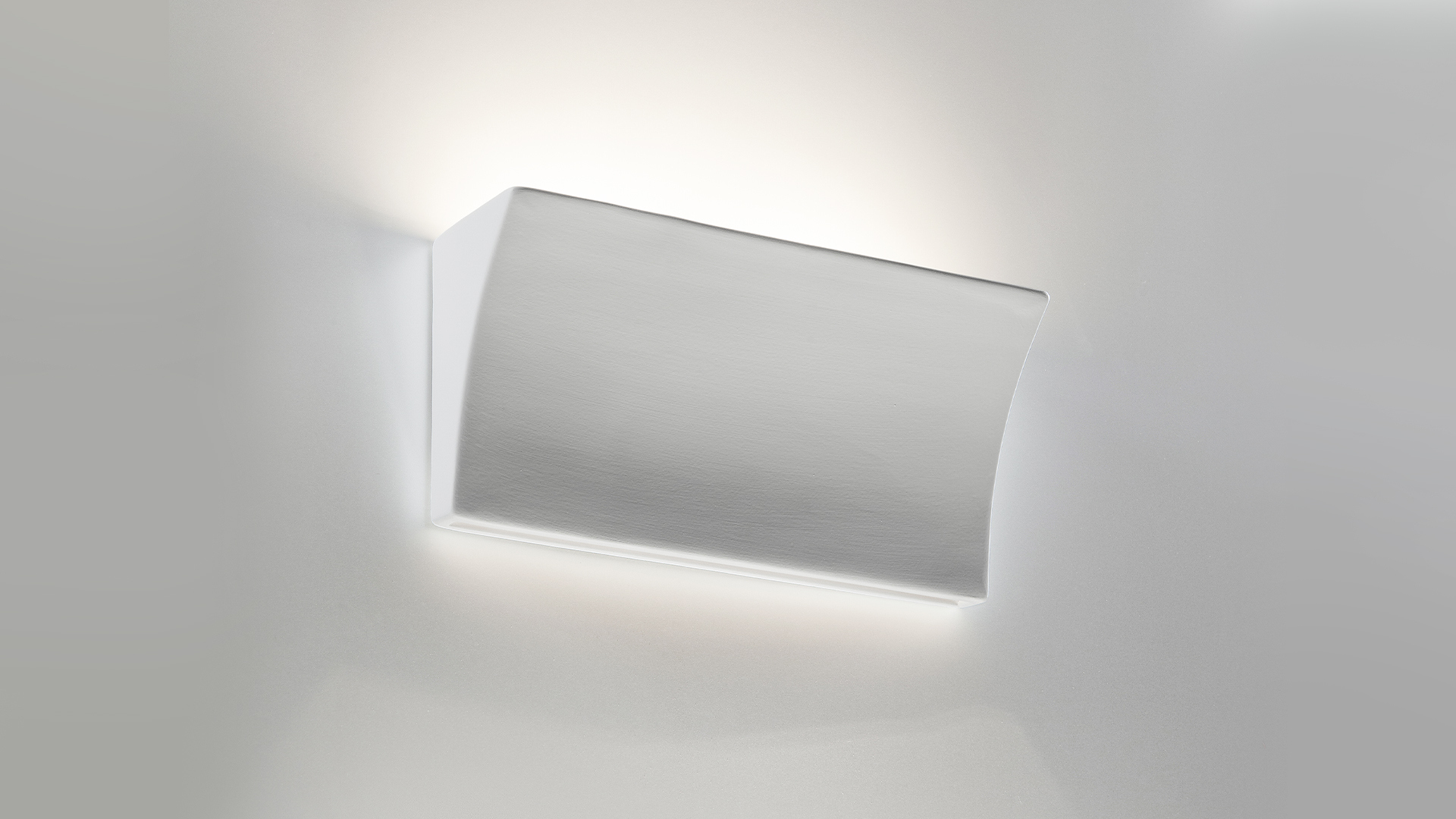

Wall lamp made of 9010 CERAMIC with LED and a modern design with dual light emission.

It consists of a ceramic rectangular shape with two slots from which the light is diffused.

Handmade in Italy

Technical specifications

Main

Article code	2014
Net weight	1.65 Kg
Materials	CERAMICA 9010®

Installation

Installation	Wall mounted
Recessed	Not recessed
Screen	No

Electrical part

Power supply	Depends on variants
Dimmable	Not dimmable
IP rating	IP20
Direct/Indirect light	Indirect light

Symbols

Dimensions

MAX G9 lamp length: 90mm

Variants

Code	Electrical part	Description	Power supply
2014-52	G9 - 240V - 50/60Hz	MAX 2x60W	Mains voltage
2014-3060	LED - 18W - 220-240V - 50/60Hz	3000K - 2700lm - CRI85	ON/OFF Driver inside, included
2014-2760	LED - 18W - 220-240V - 50/60Hz	2700K - 2550lm - CRI85	ON/OFF Driver inside, included
2014-4060	LED - 18W - 220-240V - 50/60Hz	4000K - 2850lm - CRI85	ON/OFF Driver inside, included
