POLARIS P021

Profiles

Description

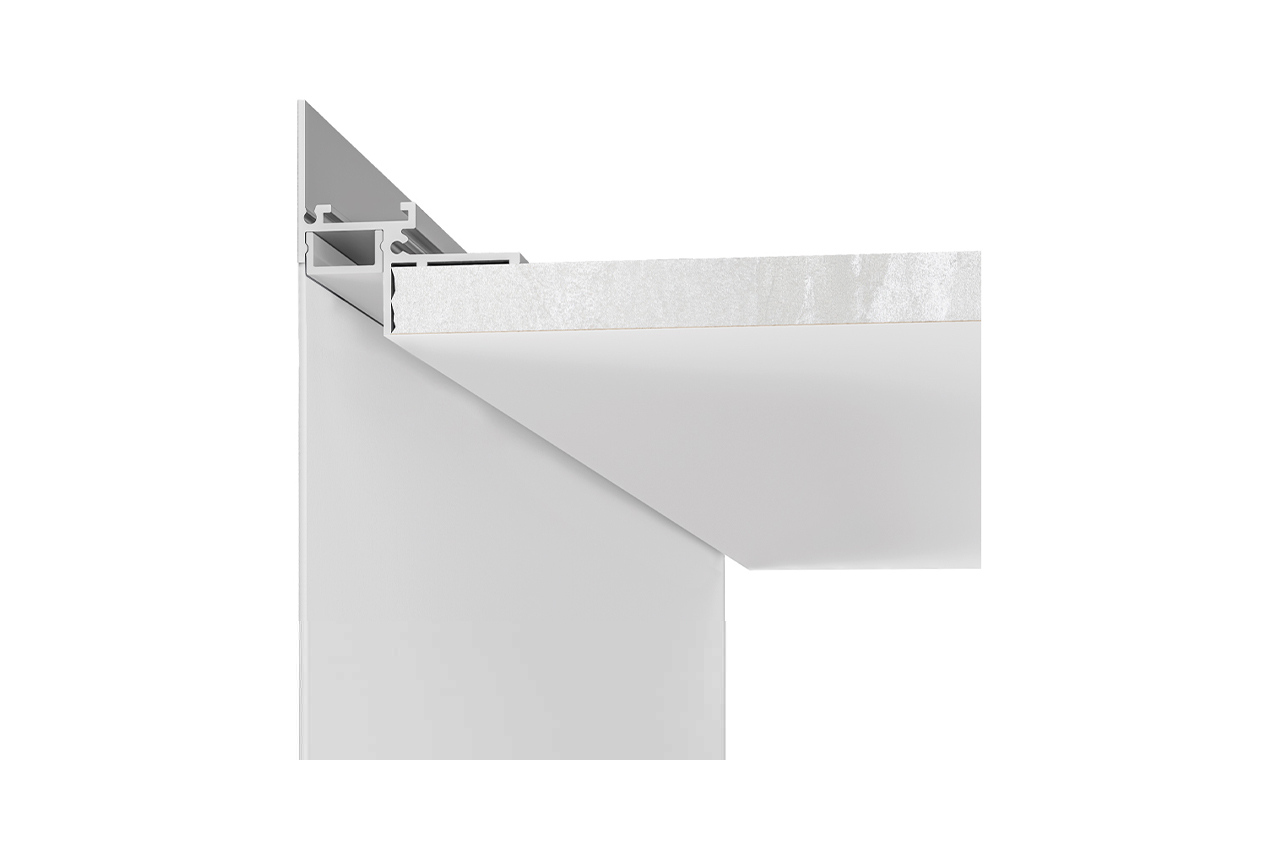

Matt RAL 9010 painted ALUMITE® profiles with quick recessing system for use with 9010 LED strips.

Each profile pack includes a finishing embossed opal methacrylate screen.

Technical specifications

Main

Article code	P021
Net weight	0.6 Kg
Materials	ALUMITE®

Installation

Installation	Wall mounted/Ceiling mounted
Recessed	Recessed
Drywall depth required	20 mm
Drywall hole size	18 mm x 3025 mm

Electrical part

Dimmable	Yes, only with dimmable driver
Direct/Indirect light	Direct light

Symbols

Dimensions

Without custom cut the lenght is to be considered with an uncertainty of ±10mm

Variants

Code	Electrical part	Description	Power supply	Driver
Code	Electrical part	Description	Power supply	Driver	P021C-00	Without electrical part	L=2020±10mm / MAX 30W/m
P021D-00	Without electrical part	L=3020±10mm / MAX 30W/m
P021B-00	Without electrical part	L=1010±10mm / MAX 30W/m

Customization

Custom cut (TGA)

Conventional cut at 45° and 90°. On a project our ALUMITE® department can cut the 9010novantadieci Profiles for a customized realization. Precision blades designed to create 90° cuts to reduce the Profile length and 45° cuts to make right angles.

Custom cut (TGP)

Custom cut, based on a project. For realizations with 9010novantadieci Profiles that create crossings and angles different from 45° and 90°. 9010novantadieci technicians are available to receive your drawing with specific measures, light direction and precise angles to make your project real!

Discover all the customizations you can apply to the 9010novantadieci products

Tailored projects

Accessories

- Driver
Compatibles DRIVER in the TECHNICAL SPECIFICATIONS section
- Strip LED
- Profiles Accessories /
- P020.KIT01
Couple of end caps
- Profiles Accessories /
- 023.700
Linear connection
- Profiles Accessories /
- 023.701
L-shaped connection
- Profiles Accessories /
- 023.702
T-shaped connection
- Profiles Accessories /
- 023.703
+-shaped connection
- Profiles Accessories /
- 023.704
Connection wall-ceiling
- Profiles Accessories /
- 029.010.100
Cover replacement A 1mt
- Profiles Accessories /
- 029.010.200
Cover replacement A 2mt
- Profiles Accessories /
- 029.010.300
Cover replacement A 3mt
